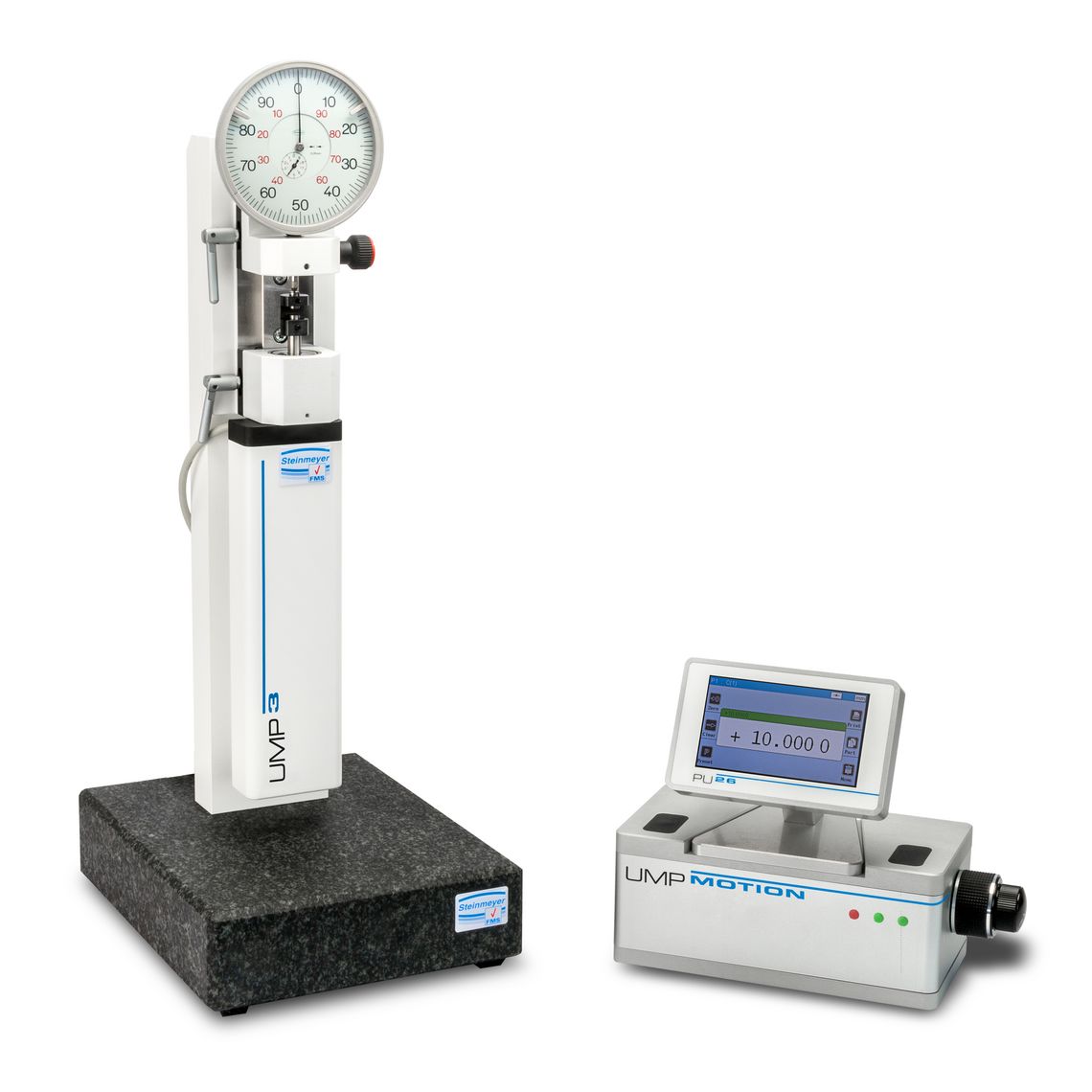

Universal dial gauge test device UMP3

For manual testing of:

  • Analogue & digital dial gauges
  • Precision indicators
  • Test indicator
  • Inductive probes



System description

The universal dial gauge testing instrument is especially suitable for quick and reliable calibration of analogue and digital dial gauges. By its motorized 30 mm precision transducer, which positions  exactly with an ergonomic placed hand wheel, a dial gauge can be calibrated simple and safe in a trice. Separated high-speed buttons on the separate control casing guarantee an easy pre-positioning.
Subsequently by means of a hand wheel with an additional rough and fine adjusting knob, the required precision is safely approached. The display, which is integrated in the separate control casing, also serves as an interface for superior software, which transmits all measured values to a preconfigured test protocol.



Detailed Information

  • Easy to use, due to motorized transducer with included measuring system
  • Flexible positioning of system parts due to separate parts
  • Very sensitive operation due to rapid-fine adjuster
  • Highest repeatability due to adherence the Abbe principle
  • Easy to use, right-handed or left-handed operation
  • Flexible due to wide range of accessories
  • Application range 30 mm
  • Resolution 0,1 µm
  • Smallest positioning steps 0,1 µm
  • Reversal range < 0,15 µm
  • Repeatability < 0,1 µm
  • Measuring inaccuaracy 0,08 µm + 1 * 10-6 * L
  • System accuracy < 0,5 µm
  • Positioning Speed 2,2 mm/sec.
  • Positioning force 15 N
  • Weight 18 kg
Order No. Description
76 4004 416 20 UMP3
