Micrometer stages / positioning systems

Positioning systems are created by combining threaded spindle, micrometer heads, and other components, such as high-precision linear guides. The threaded spindle is also used here as a solid measure for the movement in the individual axes. The positioning assemblies are used for high-precision coordinate-controlled positioning of workpieces, dies, and other elements in multiple axes. To ensure the perfect operation of the overall system, the individual components are manufactured with the highest precision, fitted by hand, and then undergo a final quality check.

For the adjustment to different environmental conditions and requirements, Feinmess Suhl demonstrates flexibility and efficiency by developing specifically sized positioning systems as per client requirements. These are as varied and diverse as their applications. Thus, the following shows standard versions, which can be modified to suit the requirements.

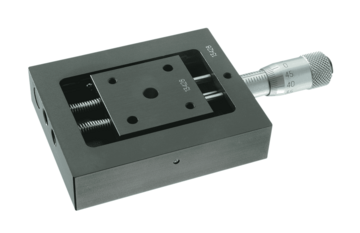

Linear adjuster LT
Micrometer stage with Travels 5 - 50 mm, Repeatability 2 µm, Load 1.5 - 5 kg, Resolution micrometer screw 10 µm

Lifting Stage HT 100-8
Micrometer lifting stage 120 x 100 mm with Travels up to 8 mm, Load up to 20 kg, Resolution micrometer screw 10 µm
Lifting stage HT 100-8
Micrometer lifting stage 120 x 100 mm with Travels up to 8 mm, Load up to 20 kg, Resolution micrometer screw 10 µm
Lifting stage HT 160
Motorized micrometer lifting stage with travels up to 16 mm, Load up to 5 kg, Resolution 0.1 µm
