Inside micrometer 561 (modular)

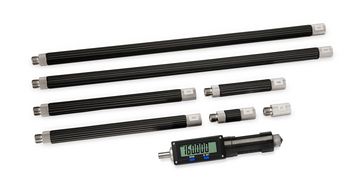

Internal measuring gauge 561, modular, with gauge block extensions up to 6100mm.
Inside micrometer 561 (modular)



Application

  • for precise measuring of inner dimensions up to 2100 mm
  • can be used for different measuring areas due to screw-on gauge block extensions

Technische Daten

  • Graduation 0,01 mm
  • Spindle thread pitch 0,5 mm
  • Measuring range 15 / 25 mm
  • Thimble diameter 19 mm

Benefits

  • Precise measurements with lapped measuring faces
  • Fixing the spindle in the desired place possible with locking lever
  • Easy to handle with CFK-extensions
  • Less wear of measuring faces due to carbide measuring faces
 Application rangeOrder No.

Gauge block extensions

Measuring range 15 mm
50 - 65 mm76 9385 301 20*-
50 - 150 mm76 9385 001 2015 mm, 25 mm, 50 mm
50 - 250 mm76 9385 002 2015 mm, 25 mm, 50 mm,

100 mm

50 - 450 mm76 9385 003 2015 mm, 25 mm,

50 mm,100 mm, 200 mm

50 - 850 mm76 9385 004 2015 mm, 25 mm,50 mm,

100 mm,200 mm, 400 mm

50 - 1450 mm76 9385 005 2015 mm, 25 mm,50 mm,100 mm,

2x 200 mm, 2x 400 mm

Measuring range 25 mm
100 - 125 mm76 9385 303 20*-
100 - 1100 mm76 9385 006 2025 mm, 50 mm, 100 mm,

2x 200 mm, 400 mm

100 - 500 mm76 9385 007 2025 mm, 50 mm,

100 mm, 200mm

100 - 2100 mm76 9385 008 2025 mm, 50 mm, 100 mm,

200 mm, 4x 400 mm

Special versions upon request.

* Micrometer head
