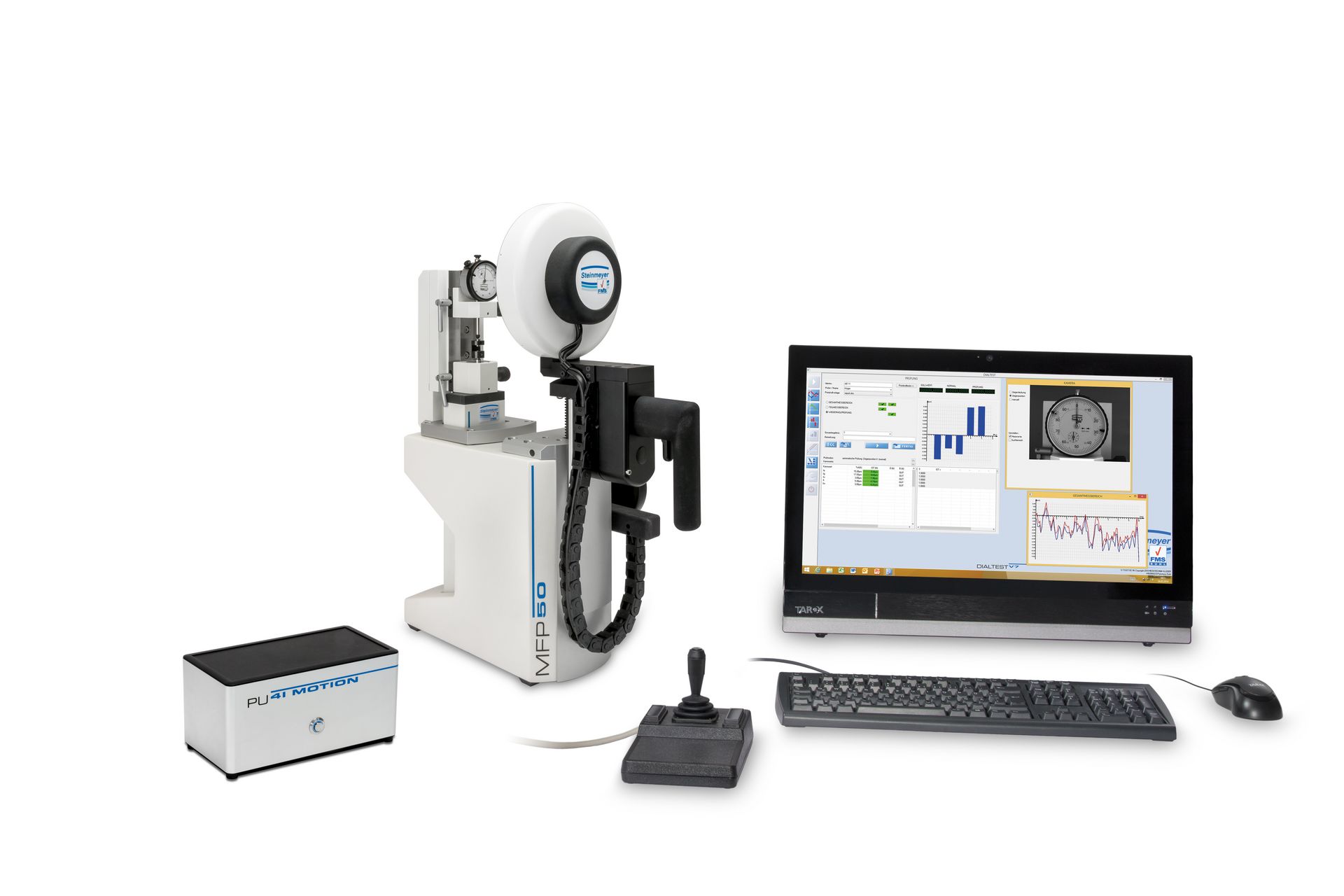

Dial gauges and precision indicator testing device MFP 50 / MFP 50 BV
Fully-automatic measuring dials and precision display testing device for analog and digital measuring dials, as well as all types of measuring probes with a measuring range of up to 50 mm. The measuring results are even more precise with image processing
Testing of:
- Analog & digital dial gauges
- Precision indicators
- Test indicator
- Inductive probes
- Incremental probes
- 2-point internal measuring devices
- Special measuring equipment such as edge sensors, electric probes, inverse, and black scales
System description
The MFP 50 / 50 BV can test analog and digital dial gauges quickly and economically even without an interface cable. The measuring results are processed, documented, and transmitted automatically to different testing device management systems due to the innovative Dialtest 8 software.
The following parameters can be defined:
- Deviations in the overall measuring range, partial measuring range, and for repeatability (range) tests in both directions (in/out)
- Testing of lever gauge measuring devices in both directions
- Measuring force testing (optional)
- Individual configuration of any measuring positions and parameter calculations
- Supports parameter calculations according to current national and international standards
- Analysis in consideration of measuring accuracies
Detailed information
- Semi- / fully automatic testing system
- Suitable for analog and digital dial gauges, precision indicators, and lever gauge measuring devices, as well as for any kind of electronic measuring probes
- Measuring range expansion by converting the dial gauge up to 100 mm is possible
- Adherence to Abbe‘s comparator principle to achieve the highest measuring precision
- Very sensitive positioning < 0.1 µm and high positioning speed ca. 2 mm/s
- Great scope for individual software adjustments for customer specific tasks
- Dialtest software version 8 for customer specific testing plans
- Measuring force testing device enables determination of force measurements while test piece is in mounted state
- Easy to handle due to movable light-camera unit
- Compact design
- Full automatic test of testing and/or lever gauges
- Application range 0 - 50 mm
- Resolution 0,01 µm
- Reversal range < 0,15 µm
- Repeatability (range) < 0,1 µm
- Measuring inaccuracy 0,08 µm + 1 * 10-6 * L
- Weight 25 kg (MFP 50), 27 kg (MFP 50 BV)
Additional benefits of extended version MFP 50 BV
- Version BV with image processing: fully automatic testing
- Automatic BV-unit enables short testing times with significantly higher accuracy compared to manual measurements
- Fast image processing using USB 3.1 camera
- The measuring process is based on automatic recognition of scaling and comparison with nominal values
The FMSplus - extensive accessories inclusive
- Dial gauges & precision indicator testing device MFP 50:
Base incl. precision position encoder with mount 28H7, interface unit PU41 motion, joystick, mount 8H7, mount dial test gauges, U-measuring attachment,choice of tower PC or all-in-one PC, Dialtest 8, connection cable, protective cover, multiple socket, operating manual
| Order No. | Description |
| 76 4104 605 20 | MFP 50 |
| 76 4104 610 20 | MFP 50 BV |
