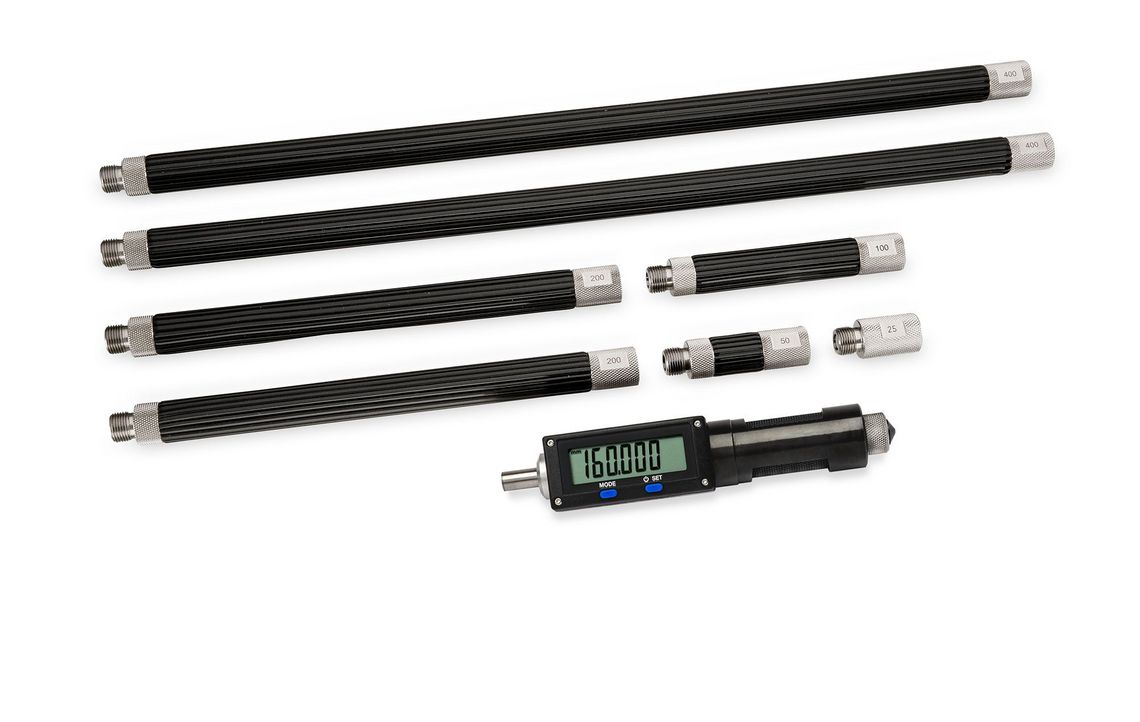

Digital inside micrometer 0626 (modular)

Modular internal micrometer 0626 with digital display, defined measuring force and expandable measuring range of up to 5000mm



Application

  •     for precise measuring of inner dimensions up to 5000 mm
  •     can be used for different measuring areas due to screw-on gauge block                    extensions

Detailed information

  • Error limits according to DIN 863
  • High accuracy due to non-rotating thrust shaft
  • Data interface for digital data transfer
  • Function hold measured value
  • Input and saving of PRESET-values
  • Setting of tolerance values
  • Min- / Max-value memory, zero point setting
  • SET: Metric / inch conversion (mm / inch)
  • Constant measuring force across spring
  • Spindle thread pitch 1,0 mm
  • Measuring faces diameter 8 mm
  • LCD display: 6 mm
  • Measuring range 25 mm / 1 inch
  • Switchable reading 0,01 mm / 0,001 mm; 0,0005 inch / 0,00005 inch
  • Measuring force across spring ~ 7 N
Application range Order No.Gauge block extensions
150 - 175 mm76 0626 701 20*-
150 - 350 mm76 0626 702 2025 mm, 50 mm, 100 mm
150 - 550 mm76 0626 703 2025 mm, 50 mm, 100 mm, 200 mm
150 - 950 mm76 0626 704 2025 mm, 50 mm, 100 mm, 200 mm, 400mm
150 - 1550 mm76 0626 705 2025 mm, 50 mm, 100 mm, 2x 200 mm,

2x 400 mm

150 - 3000 mm76 0626 706 2025 mm, 2x 50 mm, 100 mm, 2x 200 mm,

400 mm, 2x 1000 mm

150 - 5000 mm76 0626 707 2025 mm, 2x 50 mm, 100 mm,  200 mm,

400 mm, 4x 1000 mm
