Detailed information
- Error limits according to DIN 863
- High accuracy due to non-rotating (floating) spindle
- Data interface for digital data transfer
- Function “hold value”
- Input and saving of PRESET-values
- Setting of tolerance values
- Min- / Max-memory, zero point setting
- Measurement range switching metric / standard (mm / inch)
- Through additional gauge block extension ranges > 1600 mm possible
- Standard gauge block extension of internal micrometer can be used
- Spindle pitch 2,0 mm
- Pin diameter 3 mm / 6,8 mm
- LCD display: 6 mm
- Measuring range 30 mm / 1.18 inch
- Switchable resolution 0,01 mm / 0,001 mm; 0,0005 inch / 0,00005 inch
- Measuring force through spring ~ 7 N
| Application range | Order No. | Gauge block extensions |
| Receiving pin diameter 3,0 mm | ||

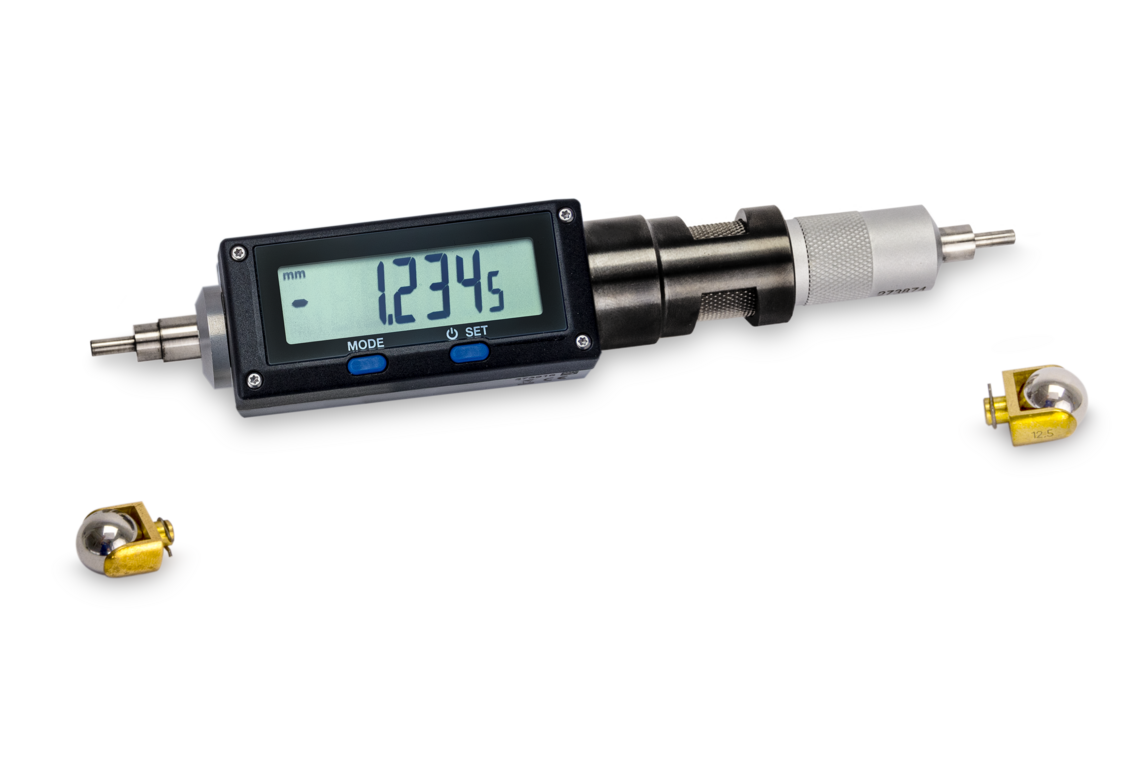

| 195 - 225 mm | 76 0826 100 20 | - |
| 195 - 400 mm | 76 0826 102 20 | 25 mm, 50 mm, 100 mm |
| 195 - 600 mm | 76 0826 103 20 | 25 mm, 50 mm, 100 mm, 200 mm |
| 195 - 1000 mm | 76 0826 101 20 | 25 mm, 50 mm, 100 mm, 200 mm, 400 mm |
| 195 - 1600 mm | 76 0826 104 20 | 25 mm, 50 mm, 100 mm, 2x 200 mm, 2x 400 mm |
| Receiving pin diameter 6,8 mm | ||
| 195 - 225 mm | 76 0826 150 20 | - |
| 195 - 400 mm | 76 0826 151 20 | 25 mm, 50 mm, 100 mm |
| 195 - 600 mm | 76 0826 152 20 | 25 mm, 50 mm, 100 mm, 200 mm |
| 195 - 1000 mm | 76 0826 153 20 | 25 mm, 50 mm, 100 mm, 200 mm, 400 mm |
| 195 - 1600 mm | 76 0826 154 20 | 25 mm, 50 mm, 100 mm, 2x 200 mm, 2x 400 mm |
| Delivery without measuring spheres in holders. / Special versions available upon request. | ||
