Digitalpassameter 3902

Digital micrometer with turnable LED display and tolerance mode, device temperature monitoring, USB interface and optional software


Short description

  • Standard: DIN 863 | DAkkS calibrated acc. to DIN EN ISO/IEC 17025:2018
  • Measuring range: 0 - 205 mm (depending on version)
  • Resolution: < 0,0001 mm (< 0,1 µm) / unit change possible mm/inch
  • Display: LCD display (turnable) with tolerance deviation, device temperature monitoring
  • Data interface: Triple I (USB cable or wireless)
  • Optionally available: software, device holder, measuring holder

Application

  • to measure precision components
  • fast and simple serial testing by lifting button and LED tolerance display
  • suitable for use in measuring rooms or close to production (IP 65)

Detailed information

Passameters are adjustable snap gauges which are mostly used for measuring and testing of round-cut and milled parts. They replace a large number of fixed gauges whilst this device also has the advantage of a number display if there are deviations to the preset value.

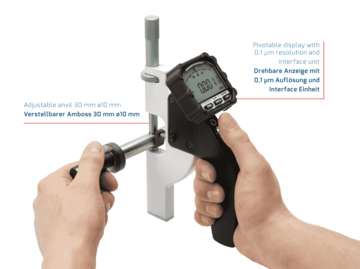

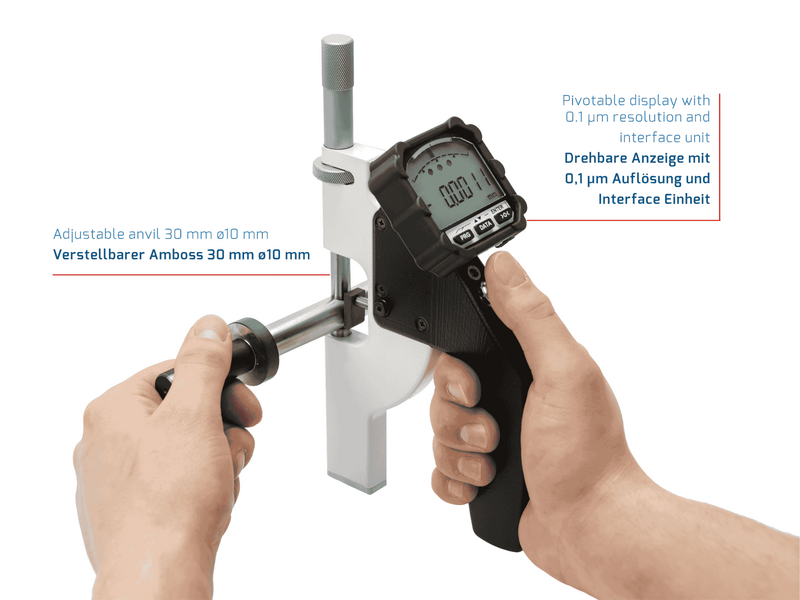

The digital passameter with a solid measuring equipment body and a novel inductive measuring system achieves a very high measuring accuracy and repeatability. The weight of the measuring tool rests on the workpiece due to the anvil which can be adjusted from the top. The measuring probe which is moved in from below has a free stroke of 4 mm and ensures a very high repeatability thanks to its constant measuring force. The display resolution is 0.1 µm. The large measuring surface of 10 mm ensures stable support on the specimen. All recorded measuring values can be processed externally with an optional wireless module. The adjustable tolerance function simplifies the use in serial measurements.

Programable with the optional software FMS-SD1 direct via cable. All internal functions like calibration, LED function and colors, indication bar, measuring mode or password lock can be done via PC.



THE DIGITALPASSAMETER 3902 AWARDED THE THURINGIA INNOVATION PRIZE

Article  Digitalpassameter 3902
Standard DIN 863
IP protection class IP 65
Measurement digital
Product type passameter, adjustable snap gauge, micrometer
Resolution (mm) < 0.0001 mm (< 0.1 µm)
Resolution (inch) < 0.000005 inch
Repeatability < 0.0003 mm (< 0.3 µm)
Flatness (measuring surfaces) < 0.0003 mm (< 0.3 µm)
Parallelism (measuring surfaces) < 0.0005 mm (< 0.5 µm)
Diameter (measuring surfaces) 10 mm
Measuring stroke of the sensor 4 mm
Measuring force standard 12 - 18 N
Measuring force special 10 N
Weight (version 0 - 30 mm) 0.9 kg
Interface Triple I (USB cable or wireless)
Software functionality Yes
Display / digit height 7 digits / 10 mm
Turnable display element Yes
Unit change  mm / inch
Display options MIN / MAX / BEAT / MW / - measurement mode
Conversion factor - Measurement mode Yes
Reference mode  I / II
Tolerance input Traffic light function, acoustic output
Reversal of measuring direction Yes
Key lock HOLD function
Device temperature monitoring Yes
Automatic power off Yes
Battery CR2032
Operating time approx. 2000 h
Measuring surfaces made of CBN on request
Packing stable box
The optional software FMS-S01 offers the possibility to configure the digital passameter also directly via a cable on the PC. This allows functions such as calibrations, LED functions and colors, bar displays, measurement modes or password protection to be activated and set.
  • High measuring accuracy with resolution of 0.1 µm
  • Solid support with 10 mm measuring faces

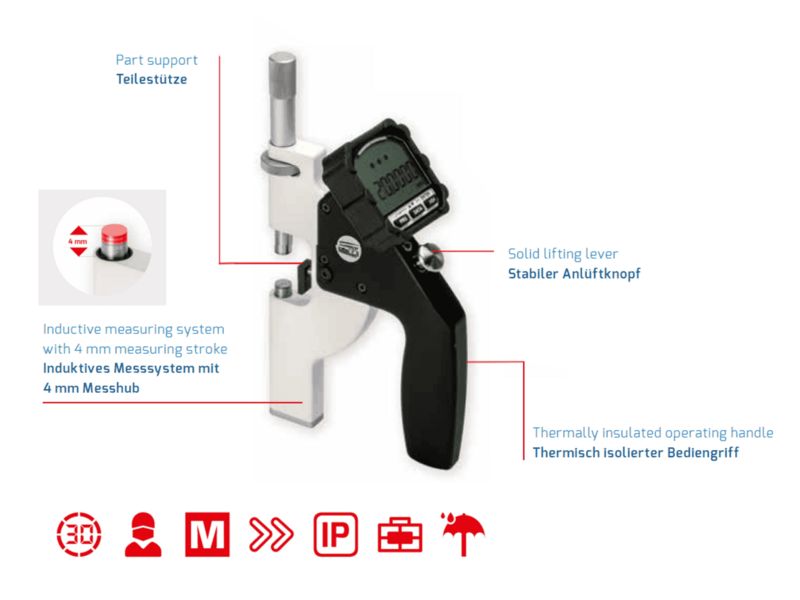

  • Linear compensated inductive probe with 4 mm measuring stroke
  • Inch conversion metric mm / inch
  • Simple serial test thanks to solid lifting device
  • Can be programmed by PC
  • Constant measuring force for great repeat accuracy < 0.3 µm

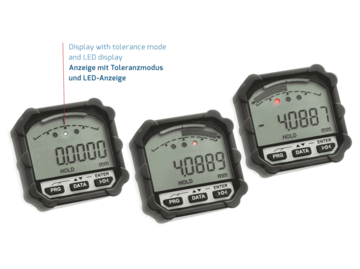

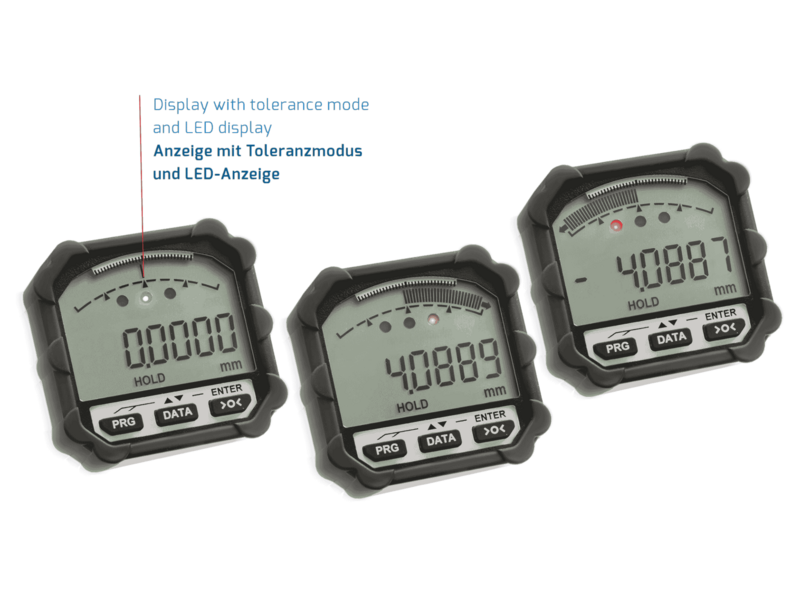

  • Large pivotable display element with adjustable tolerance field and limit value LED
  • Measuring bolt is introduced from below for low measuring errors
  • Also for production-related measuring thanks to solid design and protection class IP 65
  • Device temperature control

Accessory

  • Device holder
  • Measuring holder
  • Interfaces for USB or wireless data transfer
  • PC software IBR Simkey for USB and wireless data transfer
  • PC software FMS View for wireless data transfer

Software FMS View

The optional software FMS-S01 offers the possibility to configure the Digital Passameter also directly via a cable on the PC and to transfer measured values, e.g.:

  • display of the current values of different digital devices
  • multi-channel function i.e. parallel display of up to 10 different devices
  • extensive transfer function of the values into Microsoft Excel
  • protocol formats or device types: Sylvac duplex, Sylvac simplex, IBRit-md 1, Heidenhain ND, TESA GTLXX USB, ALMEMO, MAHR 16EXu, PU 11, PU 23, PU 26, PU 60, PU 300, MFP Control, PU 36, IK220, Solartron Orbit3

    > more about the software
Application ranges (special sizes and custom measuring surfaces on request)
Measuring range Description  Order no.
0 - 30 mm Digitalpassameter 3902 76 3902 001 20
25 - 55 mm Digitalpassameter 3902 76 3902 002 20
50 - 80 mm Digitalpassameter 3902 76 3902 003 20
75 - 105 mm Digitalpassameter 3902 76 3902 004 20
100 - 130 mm Digitalpassameter 3902 76 3902 005 20
125 - 155 mm Digitalpassameter 3902 76 3902 006 20
150 - 180 mm Digitalpassameter 3902 76 3902 007 20
175 - 205 mm Digitalpassameter 3902 76 3902 008 20
Accessory
0 - 80 mm Device holder small 76 3902 801 25
75 - 155 mm Device holder medium 76 3902 802 25
150 - 205 mm Device holder large 76 3902 803 25
0 - 55 mm Measuring holder 3902 76 3902 820 14
Software and data transfer
Transfer Description  Order no.
Cable PC interface Triple I to USB 80 0091 380 94
Cable PC software IBR Simkey  81 0000 000 13
Wireless PC interface RF1* Triple I to receiver USB 81 0000 000 16 - 81 0000 000 11
Wireless PC software IBR Simkey  81 0000 000 13
Wireless PC software FMS View 76 4104 964 20
