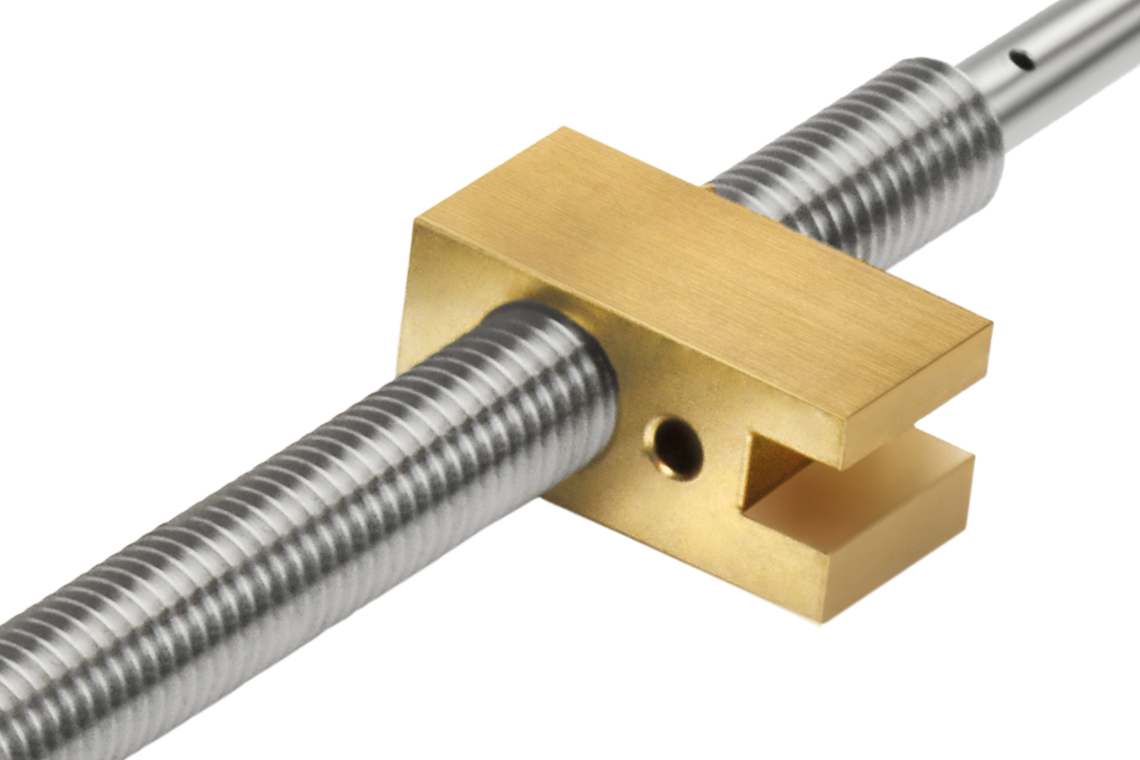

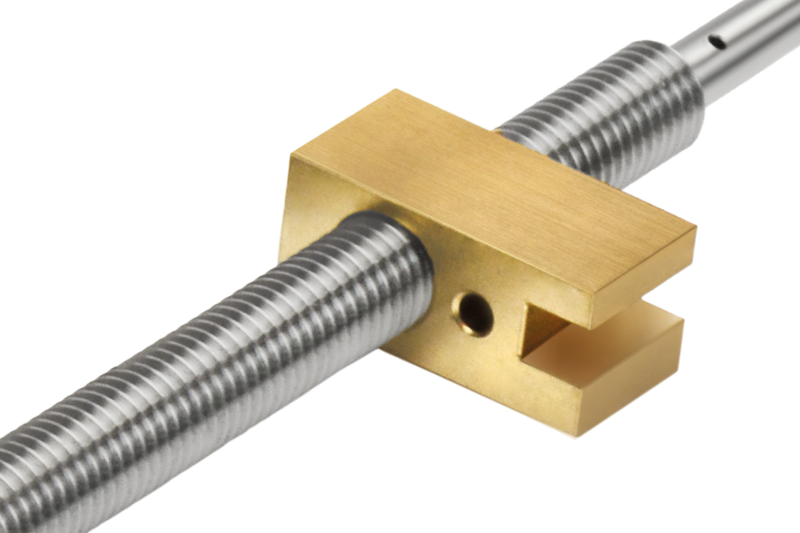

Missile Fin Actuation Lead Screw in ATGM

Missile Fin Actuation Lead Screw
in Anti-Tank Guided Missiles (ATGM)

^{76910312710 (M21x4P2/116/168,5), 76910312610}

Hardened alloy steel spindle (quenched and tempered) with material certificate
Robust design for dynamic control surface positioning under high mechanical loads
Diameter: 2 – 25 mm
Lead: from 0.2 mm
Lengths up to 300 mm

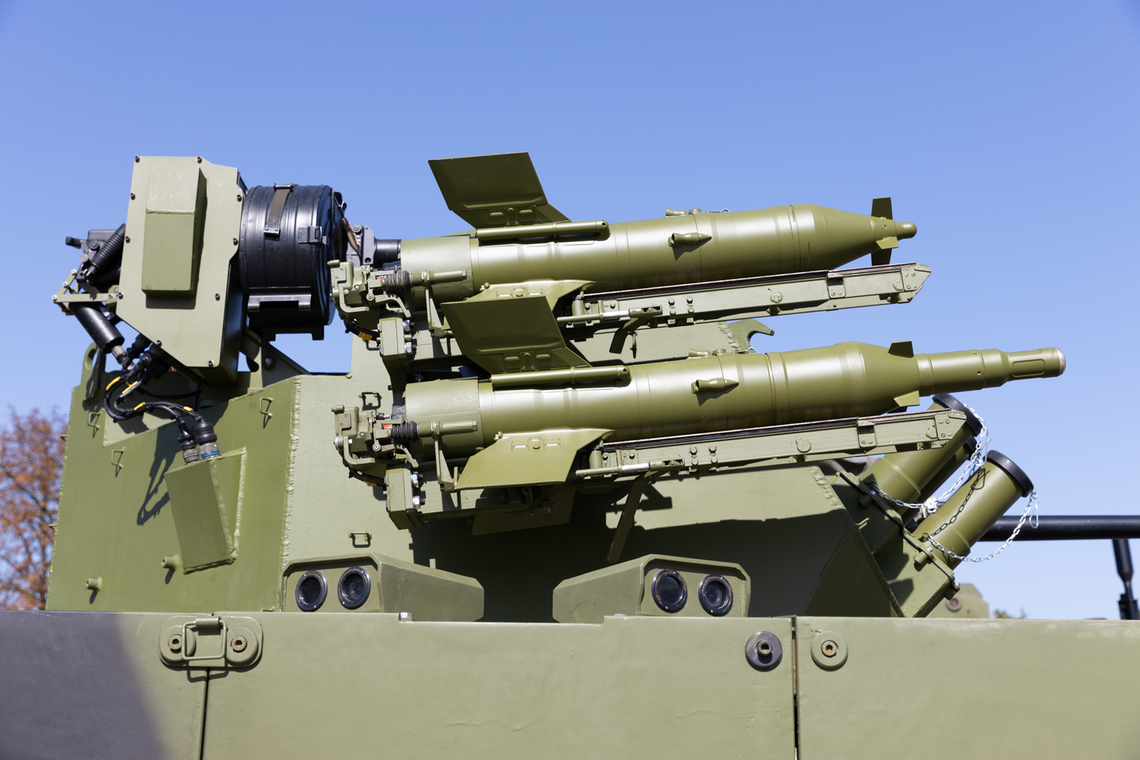

For anti-tank guided missiles (ATGM), missile fin actuation systems, guided munition control units, and precision flight control mechanisms
Geometry based on operational requirements
Single-start and multi-start designs
Different preload configurations, defined backlash, and nut pairing concepts
Application-specific materials with aerospace or military certification, e.g., high-strength, difficult-to-machine steels
Special lubrication (military approval), functional coatings, advanced solutions, additional functions, system integration, and assembly development

Let us know your exact requirements and we will contact you as soon as possible:
