DESCRIPTION

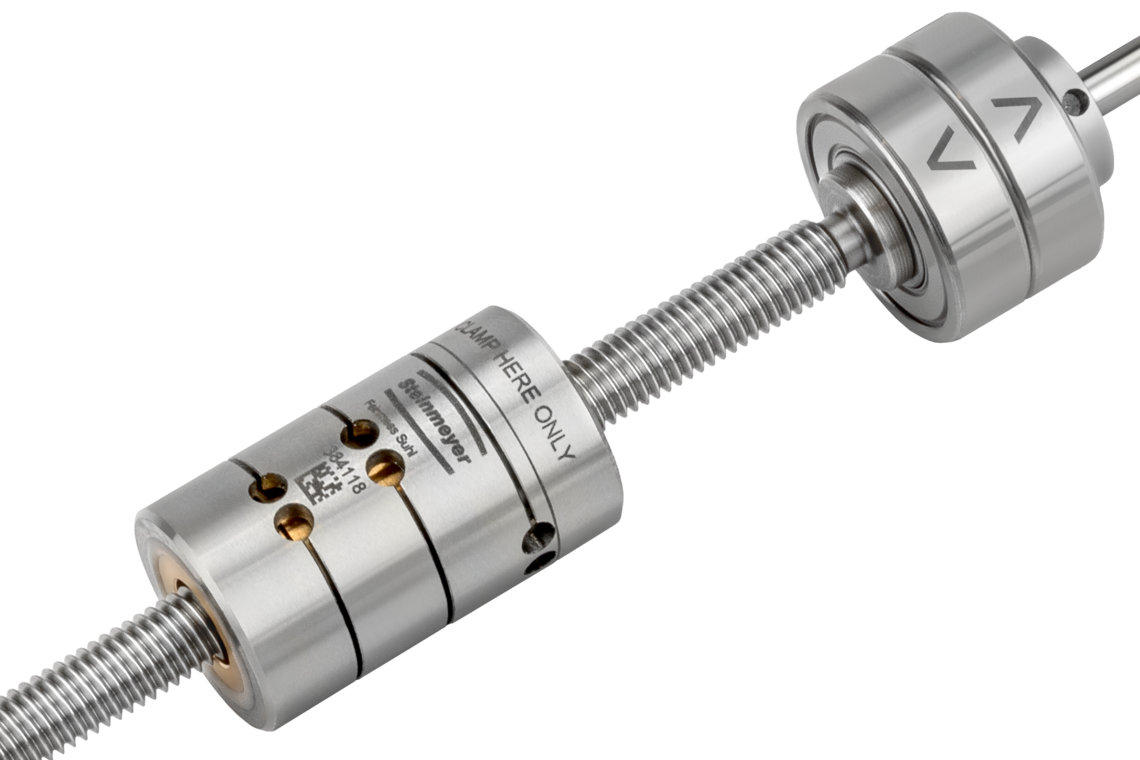

• Hardened stainless steel spindle combined with a tin bronze nut for spring element
• Backlash-free, self-compensating nut design
• Operational temperature range -30 °C to +65 °C, with torque verification testing performed at -30 °C
• Special lubricants with low evaporation rates
• Clean assembly and packaging suitable for sensitive optical systems (target cleanroom class ~10,000 or higher on request)
• Diameter: 2 – 25 mm
• Lead: from 0.2 mm
• Lengths up to 300 mm

OPTIONS

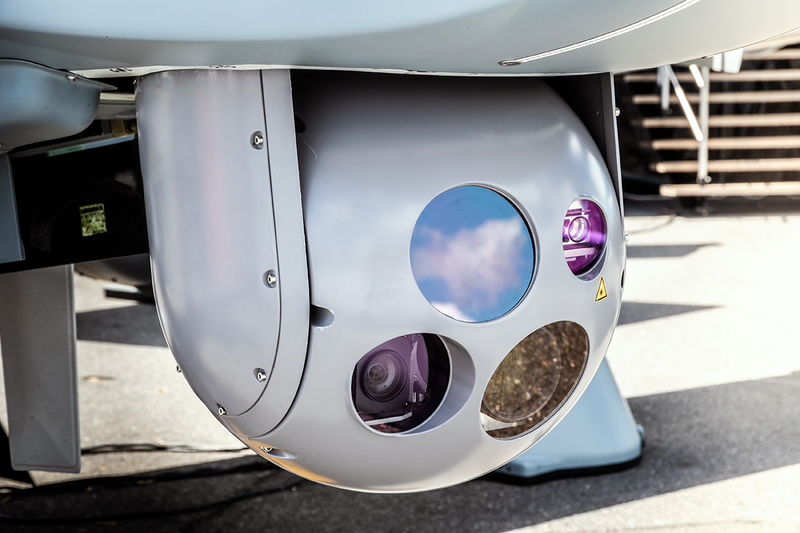

• For drone-based flight surveillance systems, helicopter observation optics, airborne monitoring platforms, and EO/IR imaging systems
• Geometry based on operational requirements
• Different preload configurations, defined backlash, and nut pairing concepts
• Extended environmental range: -50 °C to +65 °C
• Application-specific materials with aerospace or military certification, e.g., high-strength, difficult-to-machine steels
• Special lubrication (aerospace and/or military approval), functional coatings, advanced solutions, additional functions, system integration, and assembly development
